Spektrum SPMSA5070 A5070 High Torque High Speed Mini MG HV Servo
Spektrum high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software integrate with powerful brushless motor technology to offer ultra-smooth, high-speed performance more efficiently than servos with conventional motors. The all-aluminum case provides the ultimate solution in durability and heat dissipation, while precision metal gears complete a satisfaction package even the most critical pilot can appreciate. The Spektrum A5070 mini servo uses this solid foundation to achieve a whopping 190 oz/in of torque* and high transit speeds of .07 sec* in addition to its outstanding balance of durability, value, plus the peace-of-mind that sophisticated error correction and over-current/temperature protection offers. It’s an impressive feature combination that makes this mighty servo an outstanding airplane or heli servo choice.
Features
- High torque both on HV and non-HV applications
- Allows BECs of adjustable BEC ESCs to be set higher to increase performance
- Acts as a heat sink for the motor and ESC
- Low deadband, high resolution, with impressive holding torque for unmatched performance
- Durable high performance finish
Specs
- Application: Airplane or Heli
- Bearing: Dual Ball Bearing
- Bushing Or Bearing: Bearing
- Connector Type: Universal
- Connector Wire Length: 11.8" (300 mm)
- Deadband: 2µs
- Gear Type: Metal
- Maximum Servo Speed: 0.094 sec/60 deg @6.0V; 0.078 sec/60 deg @ 8.4V
- Maximum Servo Torque: 146.43 oz-in @6.0V; 190.58 oz-in @ 8.4V
- Motor Type: Brushless
- Overload Protection: Yes
- Product Application: Air

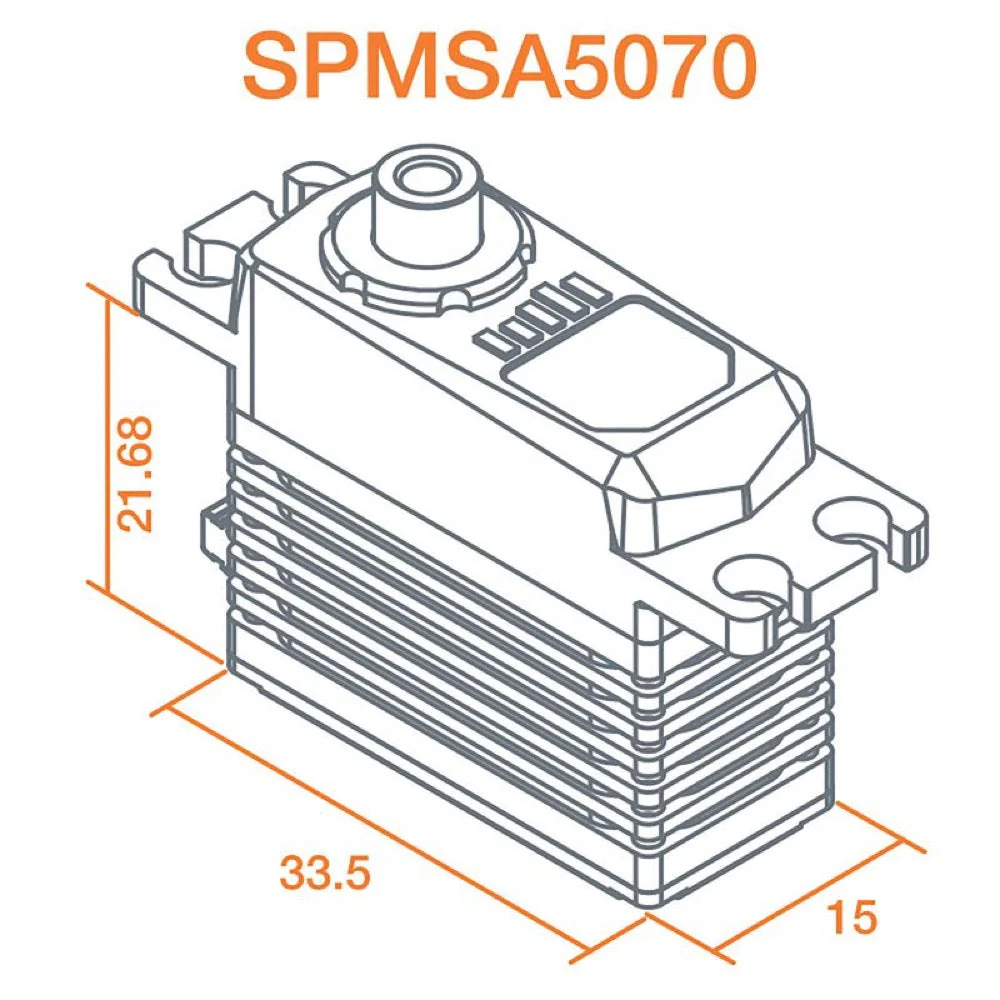

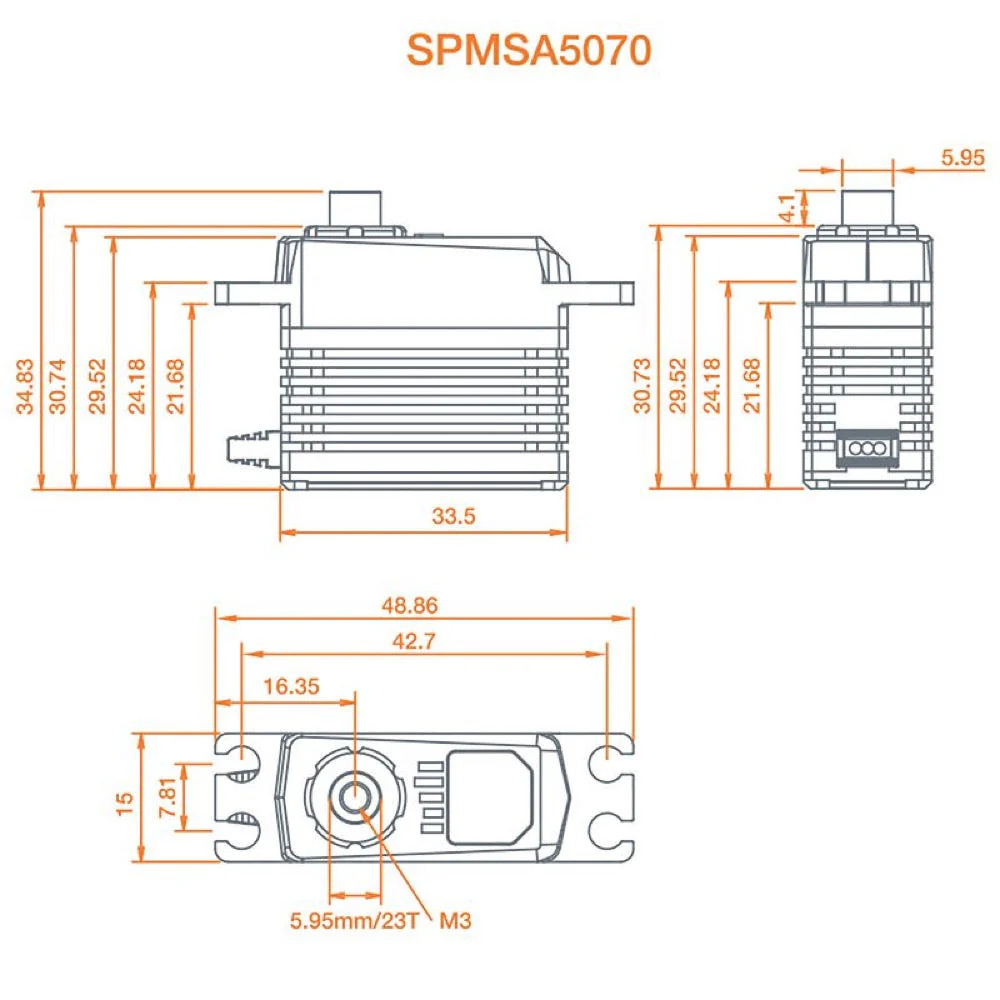

- Product Height: 1.16" (29 mm)
- Product Length: 1.32" (34 mm)
- Product Weight: 1.4 oz (40g)
- Product Width: 0.59" (15 mm)
- Programmable: No
- Rotation Range: 120 Degrees
- Servo Operating Voltage: 6.0 - 8.4V (HV)
- Servo Size Category: Mini
- Servo Type: Digital
- Spline Count: 23 - Tooth
- Water-Resistant: No
- Wire Gauge: 22 AWG
Original: $228.43
-70%$228.43
$68.53More Images
